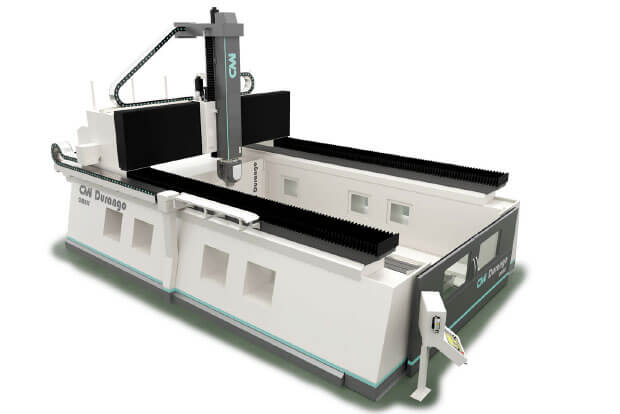

5-Axis OMNIS Milling machine
Technical characteristics
Longitudinal Path (X) | 5.000 ÷ 20.000 | ||
Transversal Path (Y) | 2.500 ÷ 5.000 | ||
Vertical Path (Z) | 1.000 ÷ 1.750 | ||
Distance between columns (mm) | 3.610 ÷ 6.110 | ||
Max. distance from table to spindle tip (mm) | 1.200 ÷ 1.950 | ||
Maximum speed rate X-Axis (m/min) | 40 | ||
Maximum speed rate Y-Axis (m/min) | 40 | ||
Maximum speed rate Z-Axis (m/min) | 24 | ||
Allowed weight on the table – (kg/m²) 15.000 | 15.000 | ||
Drives on X-Axis | 4 rack and pinion motors (2+2) | ||
Drives on Y-Axis | 2 rack and pinion motors | ||
Drives on Z-Axis | Ball screw spindles | ||
Precision according to ISO 8636-1:2000 |

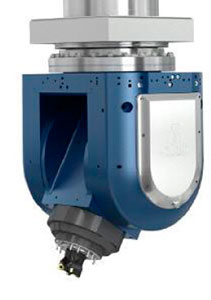

Headstocks
Eje A | Eje C | |
Nominal / Maximum torque (Nm) | 2.000 / 3.700 | 1.830 / 3.550 |
Rotation speed (º/s) | 360 | 360 |
Locking torque (Nm) | 7.000 | 7.000 |
Rotation angle (º) | ± 110 | ± 360 / cont. |
Measurement system | Absolute | Absolute |
Positioning precision (“) | ± 2,5 | ± 2 |
Approx. total weight (kg) | 2.100 | 2.100 |
![Cabezales-Fresadora-Omnis](https://www.cmidurango.com/wp-content/uploads/2022/08/Cabezales-Fresadora-Omnis-1.jpg)
Spindles
CS-50-238-A | CS-42-238-S | CS-70-238-S | |
Power S1 / S6 (kW) | 50 / 63 | 45 / 55 | 70 / 90 |
Nominal speed (r.p.m.) | 2.000 | 1.000 | 8.000 |
Torque S1 / S6 (Nm) | 248 / 315 | 400 / 525 | 85 / 105 |
Max. speed (r.p.m.) | 15.000 | 8.000 | 22.000 |
Alojamiento del icono | HSK – A100 | HSK – A100 / SK50 | HSK – A63 |
Design | ![]() |
![]() |
![]() |
CNC
![CNC-Siemens-840D](https://www.cmidurango.com/wp-content/uploads/2022/08/CNC-Siemens-840D.jpg)
Siemens 840D
![CNC-Heidenhain-ITNC-640](https://www.cmidurango.com/wp-content/uploads/2022/08/CNC-Heidenhain-ITNC-640.jpg)
Heidenhain ITNC 640
![CNC-Fanuc-31i-B5](https://www.cmidurango.com/wp-content/uploads/2022/08/CNC-Fanuc-31i-B5.jpg)
Fanuc 31i – B5
![CNC-Fagor-8065](https://www.cmidurango.com/wp-content/uploads/2022/08/CNC-Fagor-8065.jpg)
Fagor 8065
Accessories
Standard
Optional
Tool regulator | |
Perimeter fencing | |
40 tool changer | |
Chip extractors |
Laser tool | |
Probe tool | |
30 / 60 / 100 tool changer |
