RERIS L
Maximum stability for large-scale parts
The RERIS L is the highest-capacity model in our range of vertical lathes. Designed for machining large parts, it combines power, stability, and precision.
It is the ideal choice for industrial environments that require working with large dimensions without compromising on quality or process control.
Applications
Applications
|
|
|
|
|
|
|
|
|

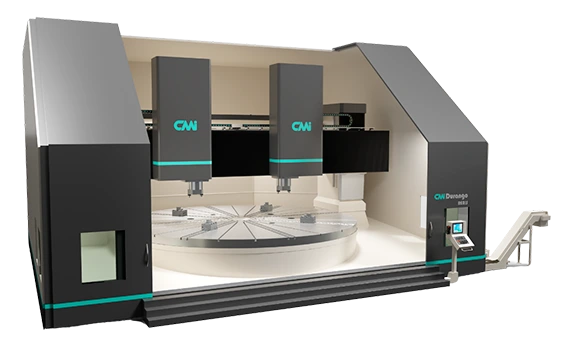

RERIS L vertical lathe
Technical characteristics
| Max. workpiece ø (mm) | 7200 | 7700 | 8700 |
| ø plate (mm) | 6500 | 7000 | 8000 |
| Max. weight (Tn) | 200 | 200 | 200 |
| Max. coil RPM | 60rpm | 55rpm | 50rpm |
| Turning power (kW) | 260 | 260 | 260 |
| Vertical displacement of crossbar “W” (mm.) – (Optional) | 1000/2000 | ||
| “Z” axis travel (mm.) | 1200/1500/2000 | ||
| Ram Section (mm.) | 400×400 (axis Z: 1200) 500×500 (axis Z: 1500/2000) |
||
| “X” axis speed(mm/min.) | 10/15 m/min. | ||
| “Z” axis speed (mm/min.) | 10/15 m/min. | ||
Headers
Tool-holder-head
Automatic turning block
Fixed turning block
Tool storage
| Number of tools | 40/60/80/100 |
| Weight of tools to support | 20kg. / 35kg. |
| Types of tools | ISO 50/60
HSK-63/80/100… CAPTO C-6/-8/-10… |
HTA head changer and piece
Pallet Changer
Meter
